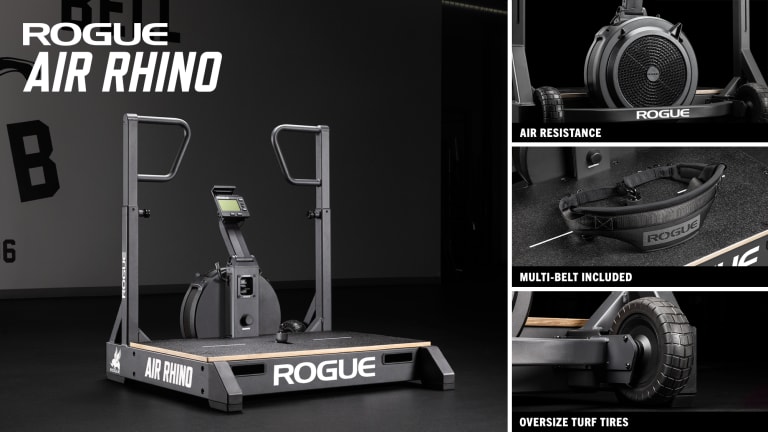

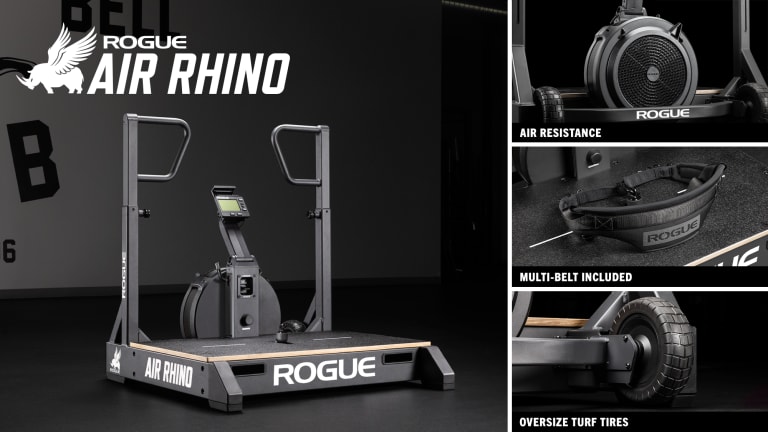

Rogue Air Rhino
Rogue Air Rhino
Type montage*
Add Multi-Use Straight Bar (8)None
Rogue Air Rhino AccessoiresBeschikbare opties (2)
Productbeschrijving
Developed from the same uncompromising design philosophy as the Echo cardio line, the Rogue Air Rhino introduces a new element in resistance training. Originally conceived in 2018, this idea evolved through multiple concepts, ultimately resulting in this final design based on the Rogue Rhino Belt Squat that utilizes a flywheel similar to the Rogue Echo Rower and Rogue Echo SKI. Anchored to a heavy duty steel and aluminum platform, the Air Rhino is a user powered engine providing velocity dependent resistance that scales with your effort. The harder you pull, the more it fights back. The Air Rhino supports a wide range of movements, to include, belt squats, deadlifts, seated rows, upright rows, curls, presses and more.
Meer lezen
Rogue AIR Rhino
AIR RESISTANCE STRENGTH TRAINING
Developed from the same uncompromising design philosophy as the Echo cardio line, the Rogue Air Rhino introduces a new element in resistance training. Originally conceived in 2018, this idea evolved through multiple concepts, ultimately resulting in this final design based on the Rogue Rhino Belt Squat that utilizes a flywheel similar to the Rogue Echo Rower and Rogue Echo SKI. Anchored to a heavy duty steel and aluminum platform, the Air Rhino is a user powered engine providing velocity dependent resistance that scales with your effort. The harder you pull, the more it fights back. The Air Rhino supports a wide range of movements, to include, belt squats, deadlifts, seated rows, upright rows, curls, presses and more.
Built for Power, Speed, and Recovery
The Air Rhino features a precision-engineered, low-inertia flywheel designed for high-force output. Unlike traditional flywheels that carry speed between reps, it slows significantly after each pull to eliminate momentum and emphasize raw force production. This shifts the focus from cardiovascular rhythm to a dedicated strength tool built for maximum explosive intent, while still remaining accessible for applications ranging from clinical rehabilitation to high-intensity strength training. Resistance is further refined through a continuous damper with a stepless sliding scale, offering precise adjustability. Combined with a concentric-only resistance system, the Air Rhino is also ideal for high-frequency training, rehab, and speed work, minimizing muscle damage and supporting faster recovery between sessions.
Patent aangevraagd
Productspecificaties
FRAME | Heavy-Duty Aluminum Frame |
MOUNTING OPTIONS | Stand Alone or Rack Mount |
AIR RHINO WEIGHT | 145LB |
| AIR RHINO HEIGHT | 46"-56,75" met verstelbare armen |
FOOTPRINT WITH FLOOR STAND | 45” x 43” |
DISPLAY | 4.7” LCD Console Display with customizable modes - Bluetooth / ANT+ compatible |
INTEGRATED SMARTPHONE AND TABLET HOLDER | Ja |
POWER | Self Generating Console Power with (2) D Cell Battery backups (Included) |
FINISH | Texture Black Powder Coat |
| ASSEMBLY | All Hardware & Assembly Tools Included |
Wat is inbegrepen
The Patent Pending Contoured Squat Belt
Heavy loading should not mean discomfort. The Air Rhino includes a re-engineered patent pending contour belt designed to solve the pinch common in traditional belt squats. Featuring a specialized arch that clears the thighs at the bottom of the movement, it eliminates digging during deep repetitions and distributes massive loads evenly across the hips. With multiple attachment points, you can customize the pull angle for any athlete’s stance or size.
Product Manual
Rogue AIR Rhino Assembly Guide (PDF)
FAQ
Software-update
All software updates are available through the Rogue app, available in the App Store and Google Play.
Service
All replacement parts are available and ship the same day for warranty issues.
We are working to also make these available on the site in the future.
Please Contact Us for any replacement part needs.
Verzenden
Rogue Snelle Verzending
Via het Rogue-verzendsysteem kun je je bestelling volgen vanaf het moment dat je de bestelling plaatst tot aan het moment dat deze wordt bezorgd. Bestel nu en volg je bestelling direct.
Design Features
Built for Power, Speed, and Recovery
The Rogue Air Rhino uses a dynamic flywheel resistance system that responds directly to your effort. The harder and faster you pull, the greater the resistance, creating an experience that rewards explosive intent while reducing recovery time between training sessions.
Concentric-Only Resistance
The Air Rhino applies resistance only during the lifting phase of each repetition. Once you finish the pull, the resistance disappears, allowing you to return to the starting position without controlling a heavy load.
- Train Safer – Without an eccentric load, there is no heavy weight to catch or lower under fatigue. If you reach failure, simply release the handle and the resistance stops immediately.
- Develop Explosive Power – With no stretch reflex to rely on, every repetition demands maximum intent from the start, reinforcing rapid force production.
- Recover Faster – Removing the eccentric phase significantly reduces muscle soreness, allowing for more frequent high-intensity training.
- Target Sticking Points – Start from virtually any position in the range of motion to isolate weak points without the need for spotter arms, pins, or additional equipment.
Dynamic, Speed-Dependent Resistance
Resistance automatically adjusts to your output. Pull harder, and the Air Rhino pushes back with more resistance. Every repetition adapts to your current strength and effort, making the machine equally effective for explosive power work, heavy strength training, conditioning, and injury rehabilitation.

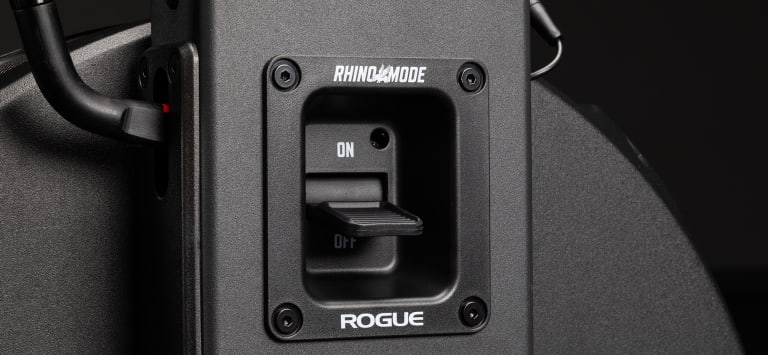

Quick Release Engagement Lever
Standard belt squats often force athletes to start from a compromised, deep squat position. The Air Rhino solves this with the quick release engagement lever that allows you to pull the cable to your desired height with minimal resistance, enabling you to secure your belt or attachments while standing upright. Once you are locked in, simply flip the lever and begin your set. Combined with our concentric only design, this removes unnecessary setup time and lets you target specific sticking points with greater precision.
The Patent Pending Contoured Squat Belt
Heavy loading should not mean discomfort. The Air Rhino includes a re-engineered patent pending contour belt designed to solve the pinch common in traditional belt squats. Featuring a specialized arch that clears the thighs at the bottom of the movement, it eliminates digging during deep repetitions and distributes massive loads evenly across the hips. With multiple attachment points, you can customize the pull angle for any athlete’s stance or size.
Built to Move
Despite its industrial grade build, the Air Rhino remains mobile. The tilt and go transport system features ergonomic front pocket handles and large diameter rear turf tires. These oversized wheels glide over virtually any surface without snagging, allowing a single person to reposition the unit in seconds. Integrated foot placement indicators and telescoping stability handles ensure that once the machine is in place, you can lock in your stance and start training immediately.
LCD Console with Bluetooth and ANT+ Compatibility
The Rogue Air Rhino is equipped with a 4.7" backlit LCD console designed specifically for strength training. In addition to tracking familiar performance metrics like watts, calories, and distance, the Air Rhino introduces force-based metrics to measure strength output. Whether you're training for personal progress or competing in official XENOM™ events, the console delivers accurate, consistent performance data every workout.
Strength-Focused Performance Metrics
- Average Force – Measures the average force applied throughout each repetition. Think of it as a barbell equivalent, making it easy to benchmark and track strength progress over time.
- Force Over Time – Measures cumulative force across each rep and the entire workout, rewarding both how hard and how long you pull.
- Watts – Tracks power output per repetition and across the full workout.
- Calories – Calculates total work performed, similar to other flywheel-based machines.
- Distance – Measures the actual length of rope pulled on every repetition and throughout the workout.
Console Features
- Pre-programmed workouts plus fully customizable workout modes
- Stores previous workout history with onboard memory
- Competition-ready accuracy for consistent performance tracking
- 4.7" backlit LCD display
- Bluetooth and ANT+ compatible
- OTA (Over-the-Air) software updates through the Rogue App
- Self-generating power with D-cell battery backup
- Integrated smartphone & tablet holder holds devices with up to a 8.5” width
OFFICIAL EQUIPMENT SUPPLIER
The Rogue Air Rhino is the official machine used for Event 007 – 5RM Rhino Pull at every XENOM™ competition. Known as the Decathlon of Fitness™, XENOM™ is a stadium-scale, two-day competition consisting of 10 events that measure total human performance through a standardized, points-based scoring system. By testing athletes across every major domain of fitness, XENOM™ establishes the first repeatable global benchmark for high-performance athletes.
XENOM™ MODE
The Air Rhino features a dedicated XENOM™ mode that replicates the official competition settings. Set the damper to MAX, enable RHINO MODE, and select XENOM on the monitor. Once you begin your first pull, you'll have 30 seconds to complete five deadlift reps, just as you would in competition.
Using real-time stroke analysis and advanced motion algorithms, the Air Rhino intelligently validates each repetition by evaluating multiple parameters, including a minimum stroke length. It automatically rejects incomplete reps so they do not contribute to Average Power calculations. Additionally, the system supports future firmware updates to further refine detection accuracy and adapt to evolving competition standards.
