Rogue RM-43 Rack
Rogue RM-43 Rack
Rack Height*
STRONGER THAN EVER

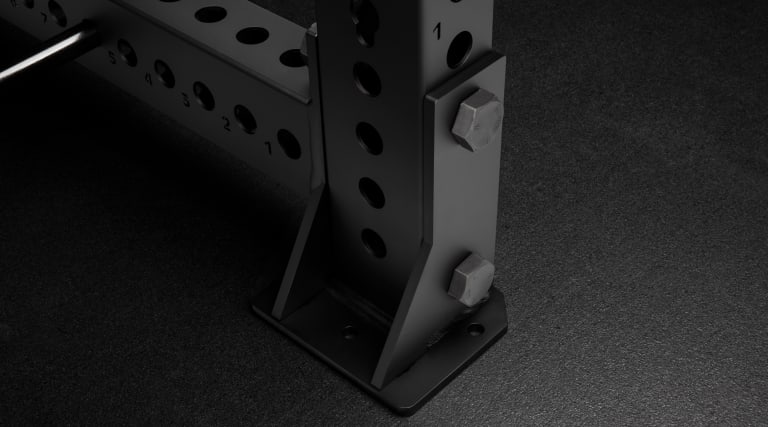

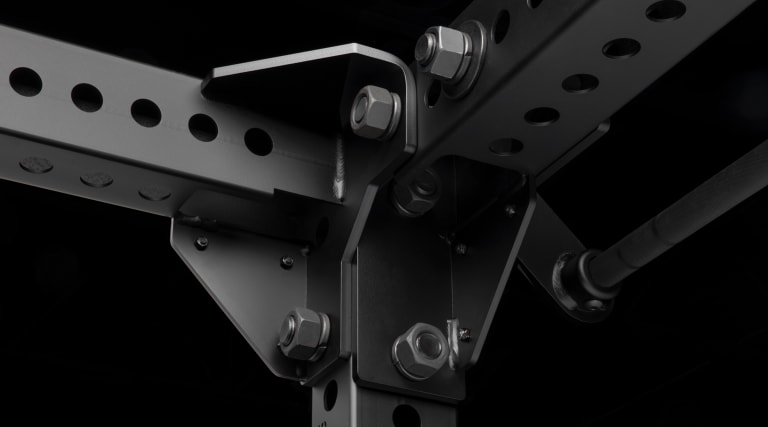

Built to outfit the country’s top collegiate, pro, and military training facilities, the American-made 43 Series marks a new zenith in power rack manufacturing, combining our largest 4x3” 11-gauge steel tubing with a unique 5-bolt top joint and twin-axis fastening method–virtually eliminating all movement from the top of the rack. Available in (3) configurations and (3) height options, this Bolt-Together version of the RM43 also includes gusseted crossmembers at the bottom of the unit, essentially acting as outriggers for even greater stability.
STRONGER THAN EVER
Built to outfit the country’s top collegiate, pro, and military training facilities, the American-made 43 Series marks a new zenith in power rack manufacturing, combining our largest 4x3” 11-gauge steel tubing with a unique 5-bolt top joint and twin-axis fastening method–virtually eliminating all movement from the top of the rack. Available in (3) configurations and (3) height options, this Bolt-Together version of the RM43 also includes gusseted crossmembers at the bottom of the unit, essentially acting as outriggers for even greater stability.
Rack Features
1" Hardware
The 1" hardware features a proprietary Matte Black finish. This is the first time we've offered hardware with this finish which transforms the surface of the steel rather than coating it. This greatly increases the long-term corrosion, impact and abrasion resistance.
FACE MOUNT SOCKET PULL-UP BAR
Single 1.125” diameter bar with a black Cerakote finish and barbell-style knurling. Includes (2) Matte Black mounting sockets and the Rogue logo in the center of the bar.
RM43 2” SANDWICH J-CUPS
Specifically formulated for 4x3” tube. 2” width, 10” height, 3/8" plate steel. The side plates fit into a recessed, machined plastic core (2" wide) to prevent metal-to-metal contact, and the hardware (that connects the plastic to the side plates) is also recessed, preventing the bar or a user’s hand from scraping against them. UHMW plastic and a rubberized lining on the clasp offer extra protection.
SAFETY STRAPS AND BAND PEGS
3" wide reinforced nylon, safety-rated for 10,000 LBS. and 4 Monster band pegs with a Black Zinc finish
Rack Features
1" hardware
The 1" hardware features a proprietary Matte Black finish. This is the first time we've offered hardware with this finish which transforms the surface of the steel rather than coating it. This greatly increases the long-term corrosion, impact and abrasion resistance.
FACE MOUNT SOCKET PULL-UP BAR
Single 1.125” diameter bar with a black Cerakote finish and barbell-style knurling. Includes (2) Matte Black mounting sockets and the Rogue logo in the center of the bar.
RM43 2” SANDWICH J-CUPS
Specifically formulated for 4x3” tube. 2” width, 10” height, ⅜” plate steel. The side plates fit into a recessed, machined plastic core (2" wide) to prevent metal-to-metal contact, and the hardware (that connects the plastic to the side plates) is also recessed, preventing the bar or a user’s hand from scraping against them. UHMW plastic and a rubberized lining on the clasp offer extra protection.
SAFETY STRAPS AND BAND PEGS
3" wide reinforced nylon, safety-rated for 10,000 LBS. and 4 Monster band pegs with a Black Zinc finish
Rack Specifications
RM43-3
A more compact version of the RM43-4, featuring a 30" inside depth. A good space efficient option.
Made in USA | Yes |
Length | 38" |
Width | 49" |
Height | 90.375" / 100.375" / 108.375" |
Steel Notes | 4x3" 11 Gauge |
Foot Print | 41” x 54” |
RM43-4
A standard set-up with a 43" inside depth. More training versatility than the RM43-3 but less storage potential than the larger RM43-6.
Made in USA | Yes |
Length | 51" |
Width | 49" |
Height | 90.375" / 100.375" / 108.375" |
Steel Notes | 4x3" 11 Gauge |
Foot Print | 54" x 54" |
RM43-6
Includes a 43" section with an additional 24" section on the back + 10 plate posts for convenient all-in-one storage. This unit also has front and back 4x4 top beams (with the Rogue nameplate in the center) for attaching the Socket Pull-Up Bar on either/both sides of the rack.
Made in USA | Yes |
Length | 79" |
Width | 49" |
Height | 90.375" / 100.375" / 108.375" |
Steel Notes | 4x3" 11 Gauge |
Foot Print | 82" x 54" |
Rack Specifications
RM43-3
A more compact version of the RM43-4, featuring a 30" inside depth. A good space efficient option.
Made in USA | Yes |
Length | 38" |
Width | 49" |
Height | 90.375" / 100.375" / 108.375" |
Steel Notes | 4x3" 11 Gauge |
Foot Print | 41” x 54” |
RM43-4
A standard set-up with a 43" inside depth. More training versatility than the RM43-3 but less storage potential than the larger RM43-6.
Made in USA | Yes |
Length | 51" |
Width | 49" |
Height | 90.375" / 100.375" / 108.375" |
Steel Notes | 4x3" 11 Gauge |
Foot Print | 54" x 54" |
RM43-6
Includes a 43" section with an additional 24" section on the back + 10 plate posts for convenient all-in-one storage. This unit also has front and back 4x4 top beams (with the Rogue nameplate in the center) for attaching the Socket Pull-Up Bar on either/both sides of the rack.
Made in USA | Yes |
Length | 79" |
Width | 49" |
Height | 90.375" / 100.375" / 108.375" |
Steel Notes | 4x3" 11 Gauge |
Foot Print | 82" x 54" |
